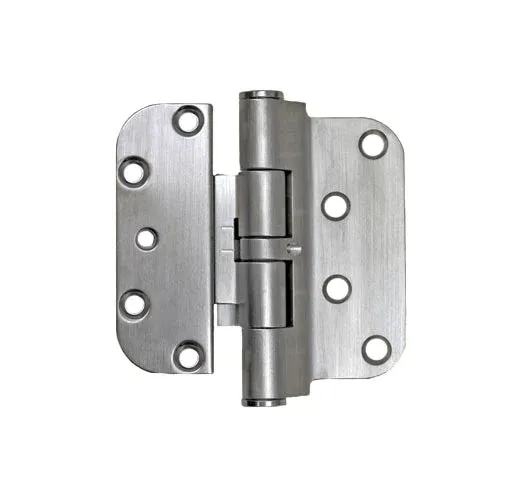

- F42-R Satin Nickle Hoppe Guide hinge
- Steel guide hinges with non-removable pin
- Steel reinforcements makes this new hinge the ultimate with door systems
- Designed to carry up to 165lbs. per door.
- Corrosion Resistant
- Specially coated components for improved durability and strength
- There are two types of adjustable hinges for each door panel
- A. Set Hinge: One per panel. This has vertical adjustment 3mm
- B. Guide Hinge: Minimum of two per panel. These hinges only have the horizontal adjustment 2mm
- When the vertical adjustment is turned clockwise, the non-adjustable leaf will move in the direction of the arrow. The vertical adjustment has 32 turns from it's extremes, and the horizontal has 7 turns. Adjust the horizontal by turning clockwise to increase the margins. Turn counter clockwise to decrease the margins
